Strapping Features:
Fully automatic Printed (PP) strapping machines offer advanced features designed to maximize efficiency and productivity in high-volume packaging environments. Here are the key features:
- High Speed and Efficiency: Fully automatic Printed (PP) strapping machines are designed for high-speed operation, significantly increasing throughput and reducing packaging time.
- Automated Operation: These machines handle the entire strapping process automatically, from feeding the strapping material to tensioning, sealing, and cutting, with minimal human intervention.
- Consistent Tension and Sealing: They ensure consistent strap tension and reliable sealing, resulting in uniformly strapped packages.
- Programmable Settings: Many fully automatic strapping machines come with programmable settings, allowing users to customize the strapping parameters to suit different packaging needs.
- Integration Capabilities: They can be integrated into existing production lines, working seamlessly with conveyors and other packaging equipment for a fully automated packaging process.
- Versatility: Suitable for a wide range of package sizes and types, accommodating various strapping materials and widths.
- High Precision: Advanced sensors and control systems ensure precise placement and secure strapping, reducing the risk of package damage.
- Durable Construction: Built with high-quality materials and components to withstand continuous, heavy-duty operation in industrial environments.
- Minimal Downtime: Designed for maximum uptime with features like quick-change strapping rolls and easy maintenance access, reducing downtime for roll changes and maintenance.
- Safety Features: Equipped with multiple safety mechanisms, including emergency stop buttons, automatic shutdown in case of malfunctions, and protective covers to ensure operator safety.
- Energy Efficiency: Many models are energy-efficient, with features like automatic standby mode when not in use to conserve power.
- User-Friendly Interface: Often feature touch screen controls and intuitive interfaces, making them easy to set up, monitor, and operate.
- Remote Monitoring and Diagnostics: Some advanced models offer remote monitoring and diagnostics capabilities, allowing for real-time performance tracking and troubleshooting.
- Low Operating Costs: While the initial investment is higher, fully automatic strapping machines can reduce long-term operating costs through increased efficiency, reduced labour, and minimal material wastage.
These features make Fully automatic Printed strapping machines ideal for businesses with high-volume packaging needs, providing reliable and efficient performance for demanding industrial applications.
Strapping Specifications:

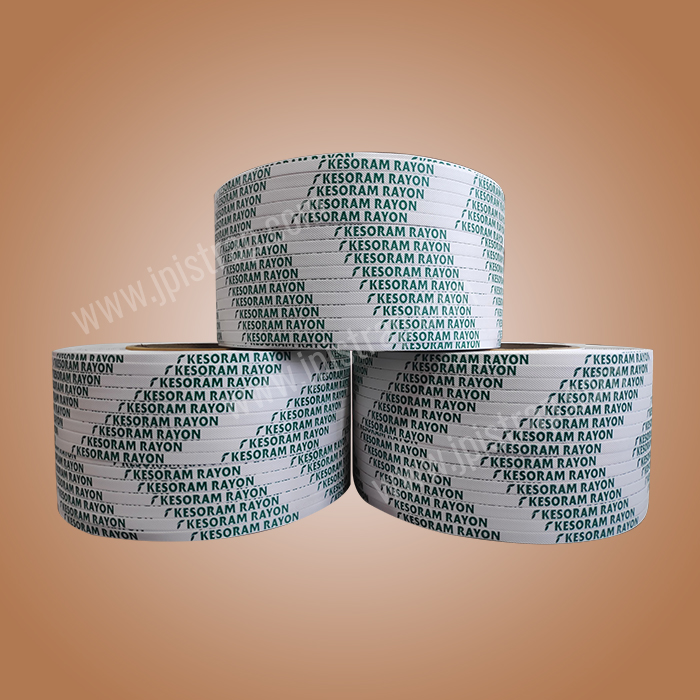

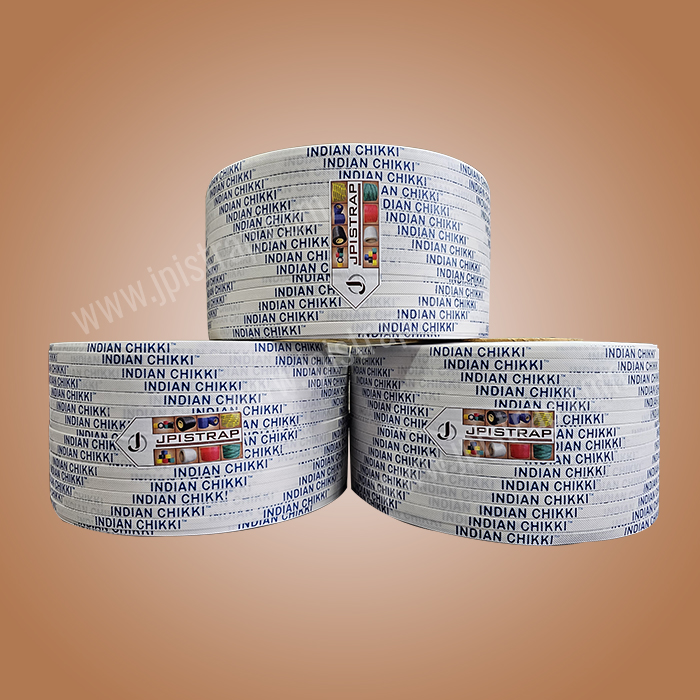

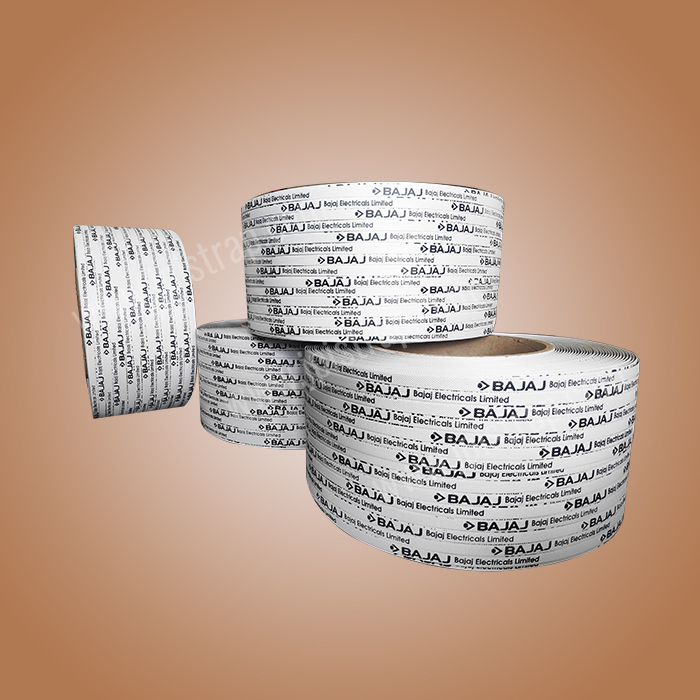

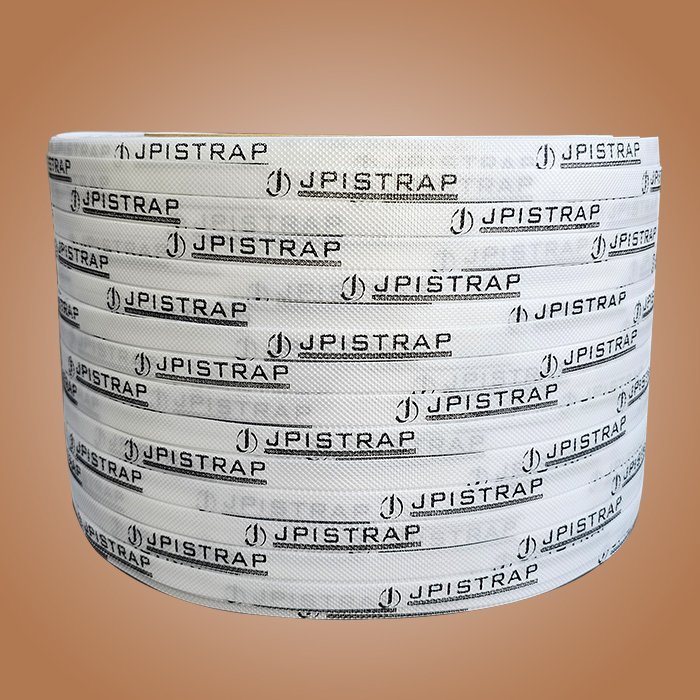

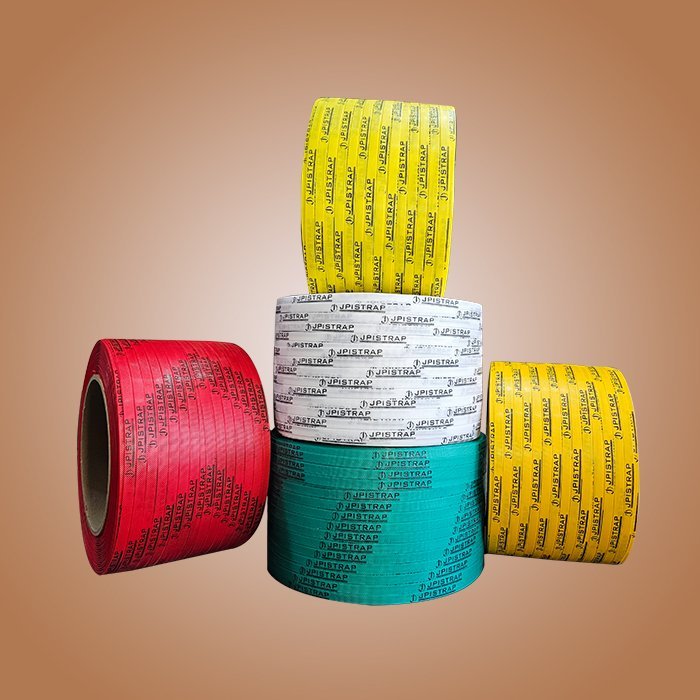

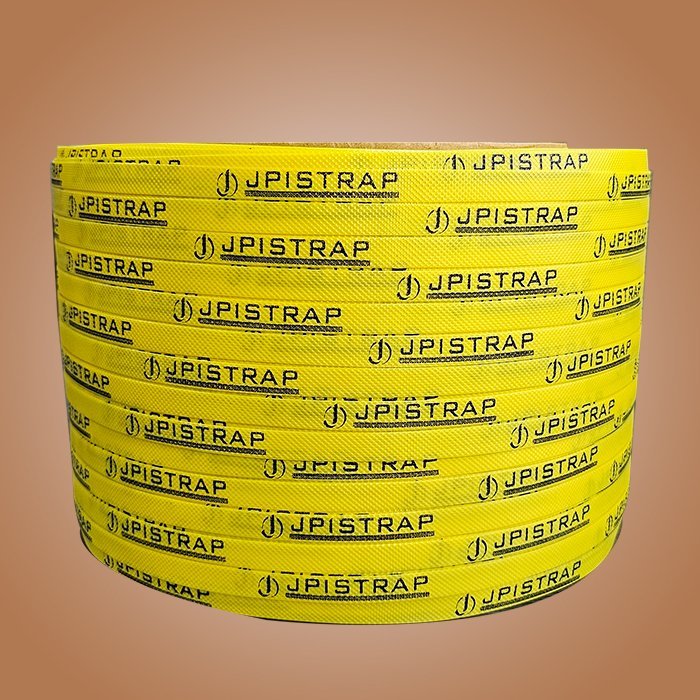

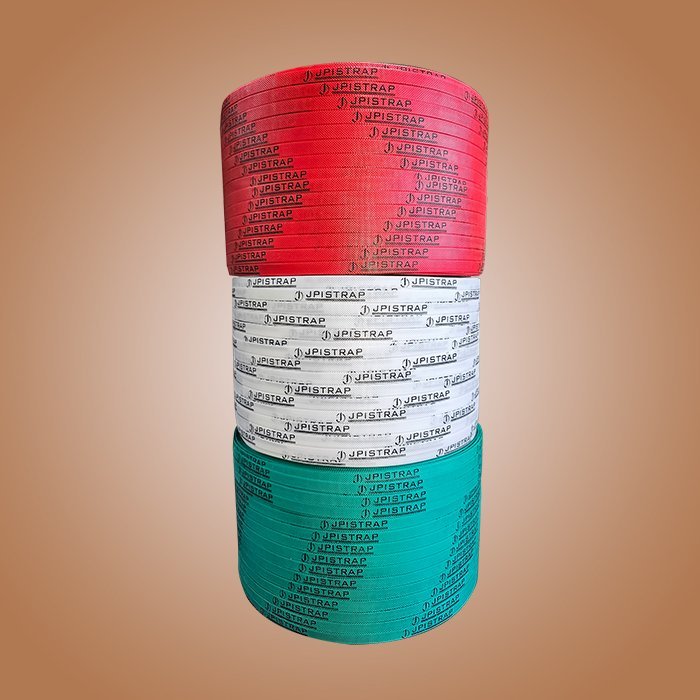

Fully automatic polypropylene Printed (PP) strapping rolls are designed for use in automatic strapping machines. Here are some typical specifications you might find for these strapping rolls:
- Material: Polypropylene Printed (PP)
- Dimensions – Width: Common widths are 5mm,8mm, 9mm,11 mm, 12mm, and 15mm.
- Thickness: Typically ranges from 0.5mm to 1.0mm.
- Length: Varies based on the roll size, commonly between 2000 meters to 7000 meters per roll.
- Tensile Strength: Typically ranges from 200 N to 500 N, depending on the width and thickness of the strap.
- Core Diameter: Common core diameters are 200mm, 280mm, and 406mm.
- Color: Available in various colors including black, white, blue, and custom colors as per requirements.
- Breaking Strength: Generally ranges from 100 kg to 300 kg, depending on the strap specifications.
- Surface Finish: Can be embossed or smooth, depending on application needs.
- Elongation: Typically around 20% to 25% at break.
- Compliance: Should comply with relevant industrial standards and regulations such as ISO, ASTM, or DIN standards.
- Packaging: Usually packed in paper tubes, with protective wrapping to prevent damage during transport.
Winding: Core length: 190 MM
These specifications can vary depending on the manufacturer and the specific application requirements. It’s always a good idea to consult with the supplier or manufacturer for the exact specifications tailored to your needs.
Code (Plain / Printed) | Width (-0.2 to -0.6mm) | Thick (0.00 to 0.08 mm) | Length Average /Me terage +5% | Average Net Weight (Kgs)+ 100gm | Average Strength (+ 5% kgs) |
JPI860 | 8 | 0.60 | 2000 | 5.800 | 65 |
JPI870 | 8 | 0.70 | 2000 | 6.000 | 80 |
JPI960 | 9 | 0.60 | 2000 | 6.000 | 80 |
JPI970 | 9 | 0.70 | 2000 | 7.000 | 85 |
JPI1160 | 11 | 0.60 | 2000 | 7.000 | 90 |
JPI1170 | 11 | 0.70 | 2000 | 8.000 | 110 |
JPI1255 | 12 | 0.55 | 2500 | 10.00 | 120 |
JPI1255 | 12 | 0.55 | 3000 | 12.00 | 120 |
JPI1260 | 12 | 0.60 | 2000 | 8.000 | 110 |
JPI1270 | 12 | 0.70 | 2000 | 9.000 | 120 |
JPI1280 | 12 | 0.80 | 2000 | 10.00 | 120 |
JPI1560 | 15 | 0.60 | 1500 | 9.000 | 130 |
JPI1570 | 15 | 0.70 | 1000 | 7.000 | 150 |
JPI1580 | 15 | 0.80 | 1000 | 8.000 | 160 |
JPI1590 | 15 | 0.90 | 1000 | 9.000 | 170 |
JPI1860 | 18 | 0.60 | 1000 | 7.000 | 170 |
JPI1870 | 18 | 0.70 | 1000 | 8.000 | 175 |
JPI1880 | 18 | 0.80 | 1000 | 9.000 | 180 |
